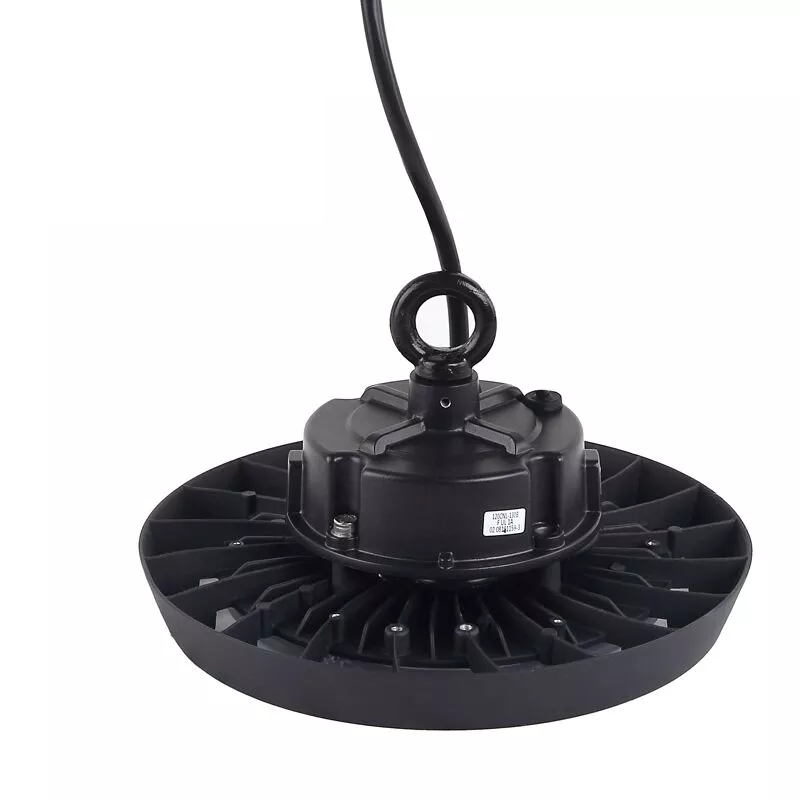

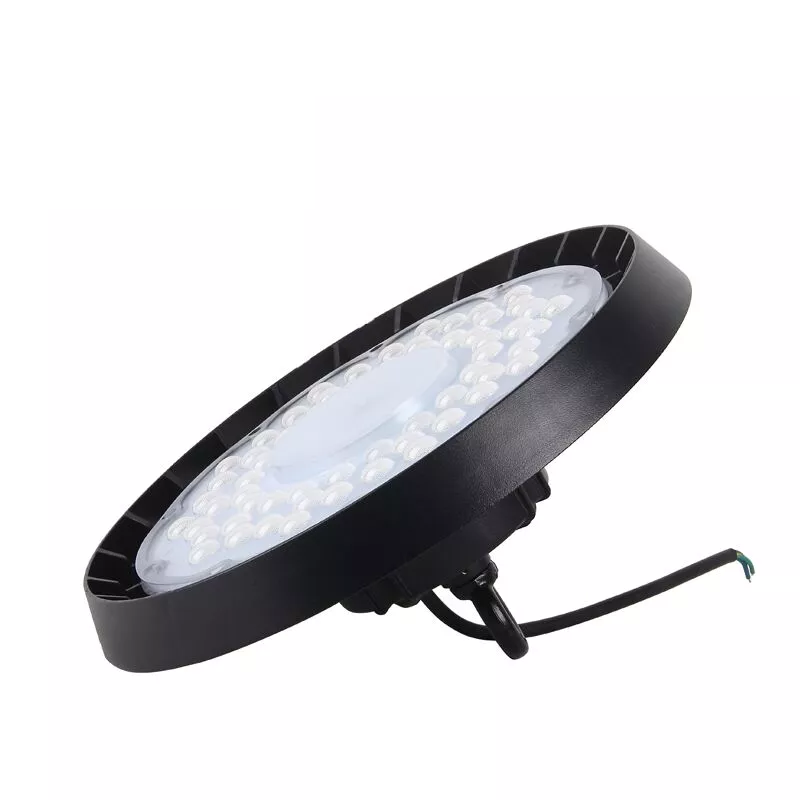

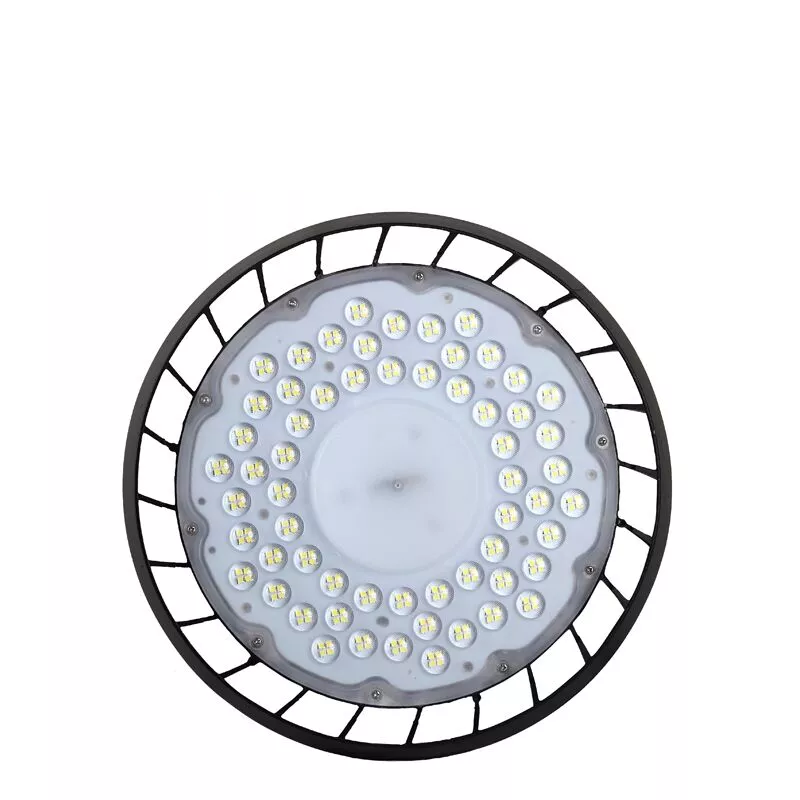

UFO LED High Bay Light
Certificate:
Add To Quote
240W
Power
70/80Ra
CRI
170lm/w
Lumen Efficiency
Lumileds
LED Chip
Meanwell
LED Driver
UFO LED high bay lights are becoming increasingly popular in commercial lighting applications. Their sleek, modern design is aesthetically pleasing and they are more energy-efficient than traditional metal halide or fluorescent lights. They also emit very little heat, making them ideal for use in warehouses and other large commercial spaces.
Features
- LED high bay lights provide better illumination than traditional lighting options.
- High bay lights are more energy-efficient than traditional lighting options
- Use less energy to produce the same amount of light.
- These lights are designed to be used in high ceilings, and they are often used to illuminate areas that are difficult to reach with other types of lighting.
- It also has high light efficacy and low power consumption, which helps to conserve resources and cut down on costs while also protecting the environment.
- LED high bay lights are available in a variety of configurations, including linear, U-shaped, and circular.
- It has excellent heat dissipation capabilities and reduces transportation costs.
- Easy to install and maintain.
- Eco-friendly
- Last up to 50,000 hours.
Super energy saving, low power consumption, health and environmental protection
The 170lm/w VKS HB3 series LED UFO light is a professional light source with no ultraviolet and low thermal radiation, preventing injury to the human body from typical light sources’ infrared and ultraviolet rays. | |

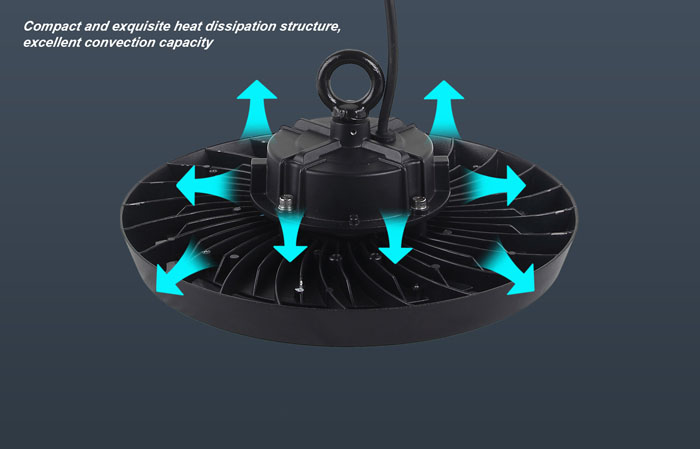

The VKS HB3 series LED industrial UFO light uses a heat radiator and power box with good ventilation and heat dissipation, as well as a wide ventilation window hole on the driver’s box and a fan plate on the radiator. To boost the overall convection capacity, a high-quality aluminum substrate with a high heat dissipation coefficient is added to the radiator. | |

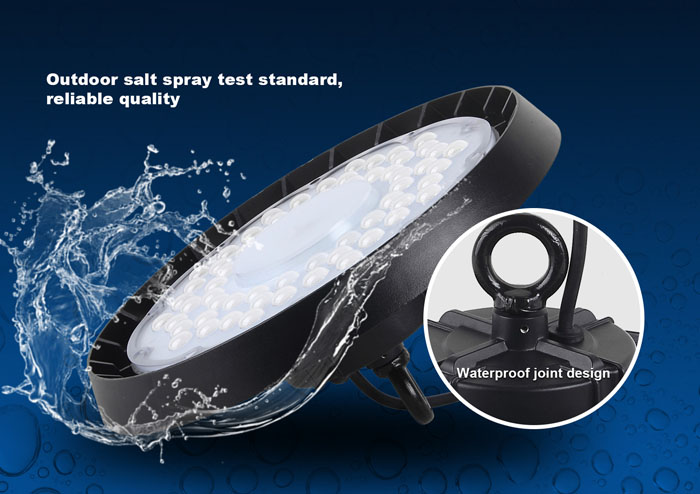

The VKS HB3 series led UFO high bay lighting housing is made utilizing surface processing technology. It can endure significant salt fog corrosion in extremely damp and corrosive tough environments without affecting its service life. | |
VKS HB3 series IP65 led industrial lighting uses high-quality LED. Within the three-step McAdam, the relevant color temperature is rigorously controlled. It efficiently ensures that the light color is consistent. It supports three different types of light, with the maximum efficiency of LED emitting each beam of light and lowering the output of light so that the lamps and lanterns have the best optical effect. |
Model | PS-HB3-50W | PS-HB3-100W | PS-HB3-150W | PS-HB3-200W | PS-HB3-240W |
Power | 50W | 100W | 150W | 200W | 240W |

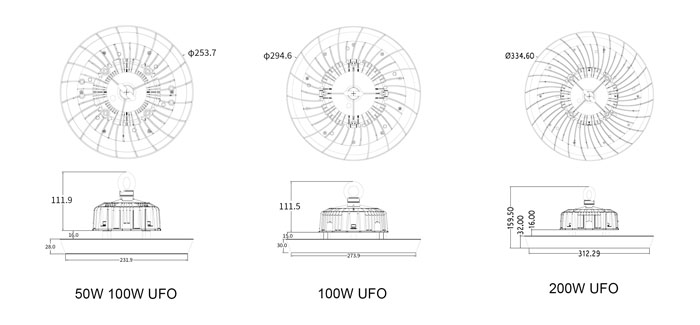

Product size(mm) | Φ254*112mm | Φ254*112mm | Φ295*112mm | Φ335*160mm | Φ335*160mm |
Input Voltage | AC90-305V 50/60Hz | ||||
LED Type | Lumileds(Philips) SMD 3030 | ||||
Power Supply | Meanwell / ELG / SOSEN / Inventronics driver | ||||
Efficacy(lm/W)±5% | 160-170LM/W(5000K, Ra70) | ||||
Lumen Output±5% | 8250LM | 16500LM | 24750LM | 33000LM | 39600LM |

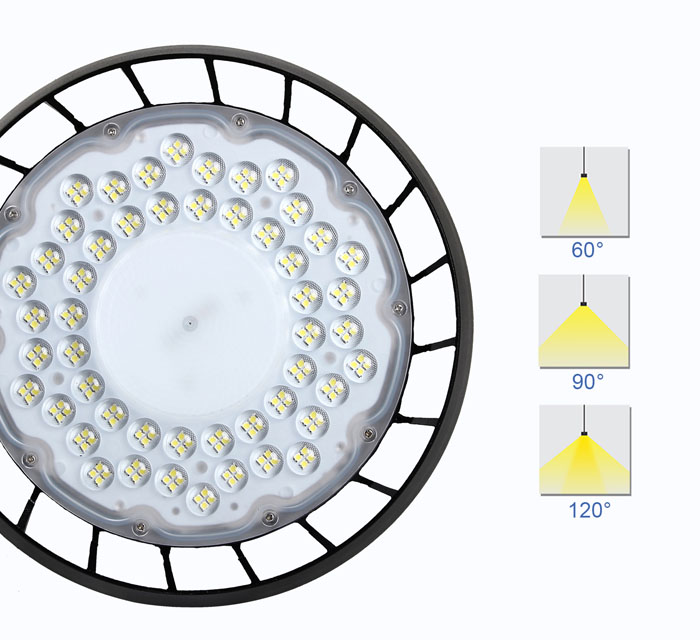

Beam Angle | 60° / 90° / 120° | ||||
CCT (K) | 3000K/4000K/5000K/5700K | ||||
CRI | Ra70(Ra80 for optional) | ||||
IP Rate | IP65 | ||||
PF | >0.95 | ||||
Dimming | Non-dimming (Default) /1-10V Dimming / Dali dimming | ||||
Intelligent Control | Motion Sensor | ||||
Material | Die-Cast + PC Lens | ||||
Operating Tenperature | -40℃ ~ 65℃ | ||||
Humidity | 10%~90% | ||||
Finish | Powder Coating | ||||
Surge Protection | 4kV line-line(10KV,20KV for optional) | ||||
Mounting Option | Bracket | ||||
Warranty | 5 Years | ||||

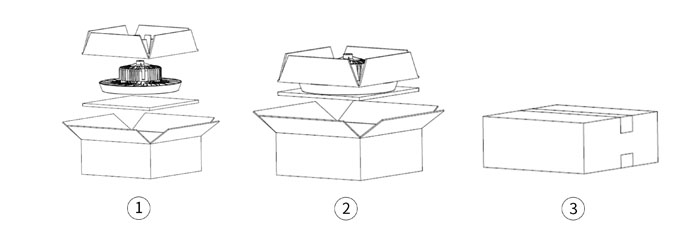

Q’TY(PCS)/carton | 1PCS | 1PCS | 1PCS | 1PCS | 1PCS |
N.W.(KG/carton) | 1.2kg | 1.3kg | 1.9kg | 2.3kg | 2.3kg |
Carton Size(mm) | 268*268*140mm | 268*268*140mm | 310*310*142mm | 347*347*145mm | 347*347*145mm |
G.W.(KG/carton) | 1.6kg | 1.7kg | 2.3kg | 2.7kg | 2.7kg |

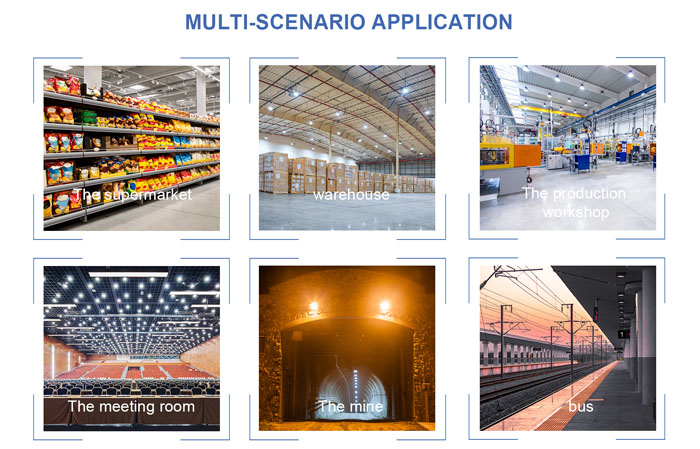

In order to accomplish the benefits of low light decline, high light efficiency, energy savings, and environmental protection, VKS HB3 series high bay LED shop lights use high-power LEDs as their light source. They also use good imported phosphor powder, which ensures the lights’ high thermal conductivity, small light decline, pure light color, no ghosting, and other qualities. Suitable for lighting or flood lighting in factories, industrial and mining enterprises, petroleum, chemical workshop, workshop, warehouse, highway toll stations, gas stations, large supermarkets, exhibition halls, smelting, and other flammable and explosive locations.

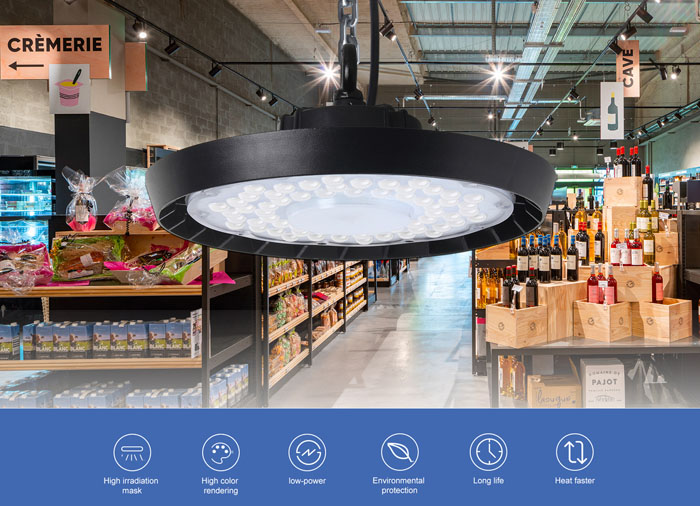

VKS HB3 series high bay light fixtures provide heat dissipation body surface coating processes, a compact structure, and superb color rendering. It can make real-world color rendering more vibrant and provide a wider range of color possibilities. It can satisfy the needs of various situations, and is extensively used in factories, warehouses, and other big supermarket fruit high brightness illumination needs, particularly in supermarket lighting design to exhibit the qualities of products, attract people, and enhance the indoor atmosphere, among other things.
-
Q.Does a guarantee cover the products from you?
A.Yes. We provide a 3-5 year warranty on all of our goods.
-
Q.Is it okay to print my company's logo on a led light product?
A.Yes. Before we begin production, kindly inform us in writing and validate the design using our sample.
