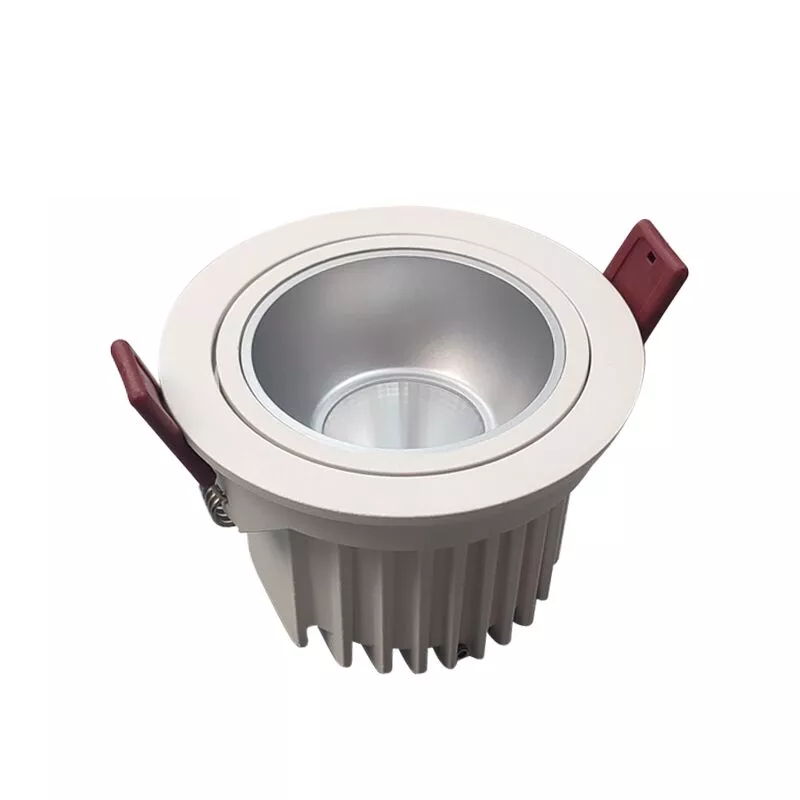

Marcia Series 4 inch LED downlight
Product Code: PS-DL30C30
To provide people with a comfortable visual experience, the Englumia C30 series downlight led lighting fixture with a 15/30/45 beam angle and 10/15/20/30W is offered. It satisfies the demands for low height, better-quality aluminum materials, consistent lighting color, and low UGR, and is particularly suited for commercial areas. These stylish lights are available in a variety of finishes, including brushed nickel and oil-rubbed bronze, to match your home's decor.
Certificate:
Add To Quote
10-30W
Power
83/92Ra
CRI
80lm/w
Lumen Efficiency
Citizen
LED Chip
Tridonic
LED Driver
Specification Table
| Model | PS-DL10C30 | PS-DL15C30 | PS-DL20C30 | PS-DL30C30 | |||
| power | 10W | 15W | 20W | 30W | |||
| Product size(mm) | Φ85*59mm | Φ105*71mm | Φ130*86mm | Φ150*93mm | |||
| Input Voltage | AC220-240V 50/60Hz | ||||||
| LED Type | Citizen/Luminus/Cree COB | ||||||
| Power Supply | Tridonic / Osram / Philips / Boke | ||||||
| Efficacy(lm/W) | 80LM/W | ||||||
| Lumen Output±5% | 800LM | 1200LM | 1600LM | 2400LM | |||
| Beam Angle | 15/30/45° | ||||||
| CCT (K) | 2700/3000K/4000K/5000K/5700K | ||||||
| CRI | Ra80/Ra90/Ra97 | ||||||
| PF | >0.9 | ||||||
| SDCM | <3 | ||||||
| UGR | <19 | ||||||
| Material | Die-Casting Aluminum | ||||||
| THD | <15 | ||||||
| IP Rate | IP20 | ||||||
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming | ||||||
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick | ||||||
| Warranty | 5 Years | ||||||
| Q’TY(PCS)/carton | 24pcs | 18pcs | 12pcs | 12pcs | |||
| NW(KG/carton) | 9.6kg | 12.6kg | 12kg | 9kg | |||
| Carton Size(mm) | 400*300*380mm | 460*340*370mm | 5200*380*300mm | 580*420*430mm | |||
| GW(KG/carton) | 11.6kg | 14.6kg | 14kg | 11kg | |||
Applications
The Marcia Series 4-inch LED downlight is one of the most versatile and popular products in our line. With a variety of applications and a wide range of colors, the Marcia Series 4-inch LED downlight is sure to meet your needs. The LED downlight is one of the most versatile and commonly used lighting fixtures in both residential and commercial settings. Its small size, relatively low cost, and high efficiency make it an ideal choice for a wide variety of applications.
The Englumia C30 series is appropriate for lighting applications such as shopping malls, hotels, exhibition halls, conference halls, business halls, residential, office, catering, and other public spaces.
Documents
2022.03.05
18.99KB
Faqs
-
Q.Do you provide a guarantee on your products?
A.Yes. Our products are covered by a 3-5 year warranty.
-
Q.Is it feasible to have my brand printed on a led light product?
A.Yes. Please notify us in writing before we begin production and validate the design first using our sample.
