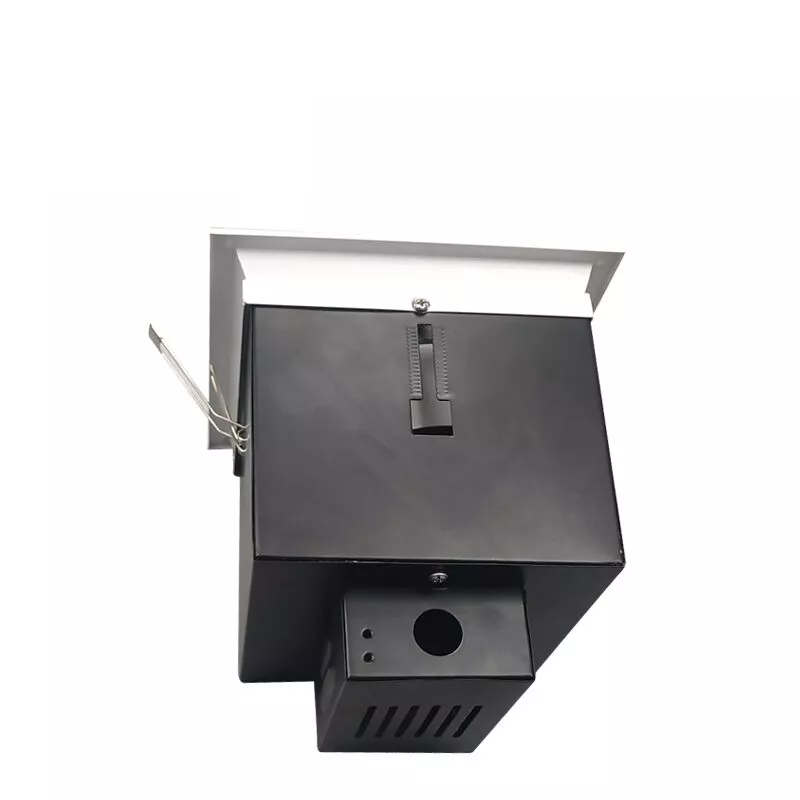

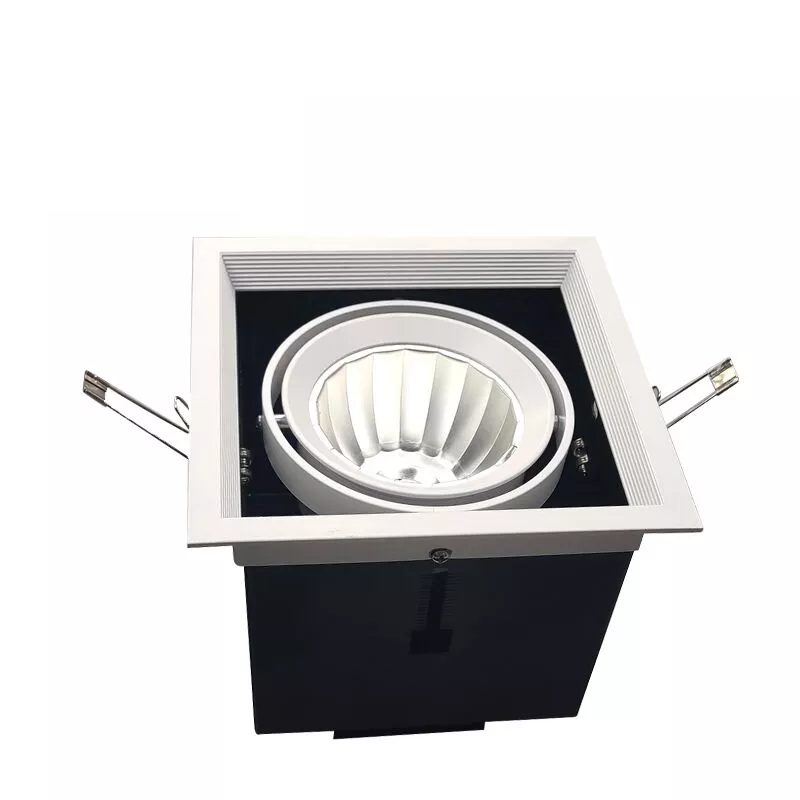

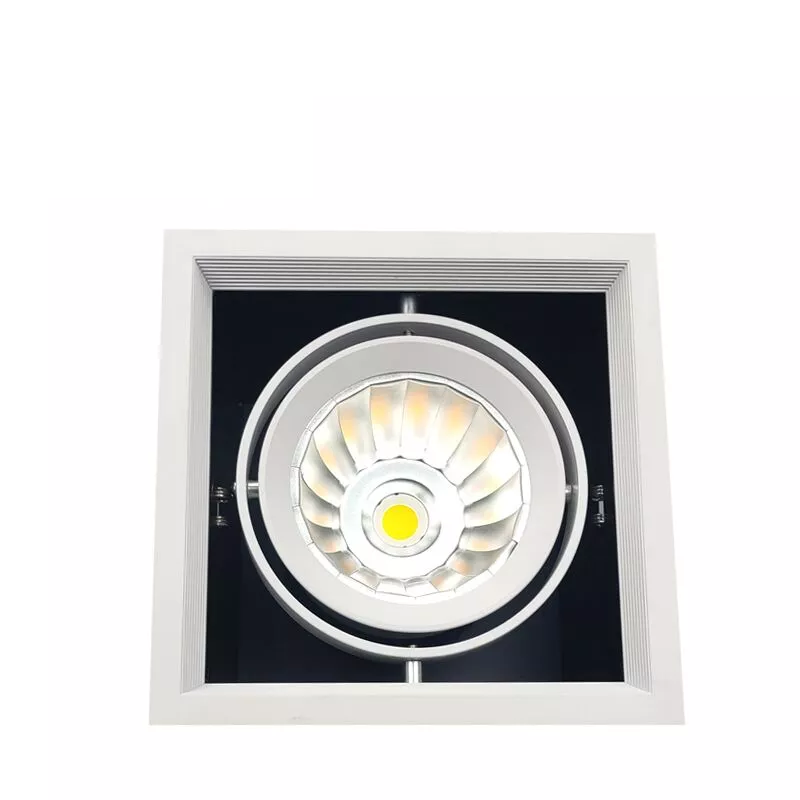

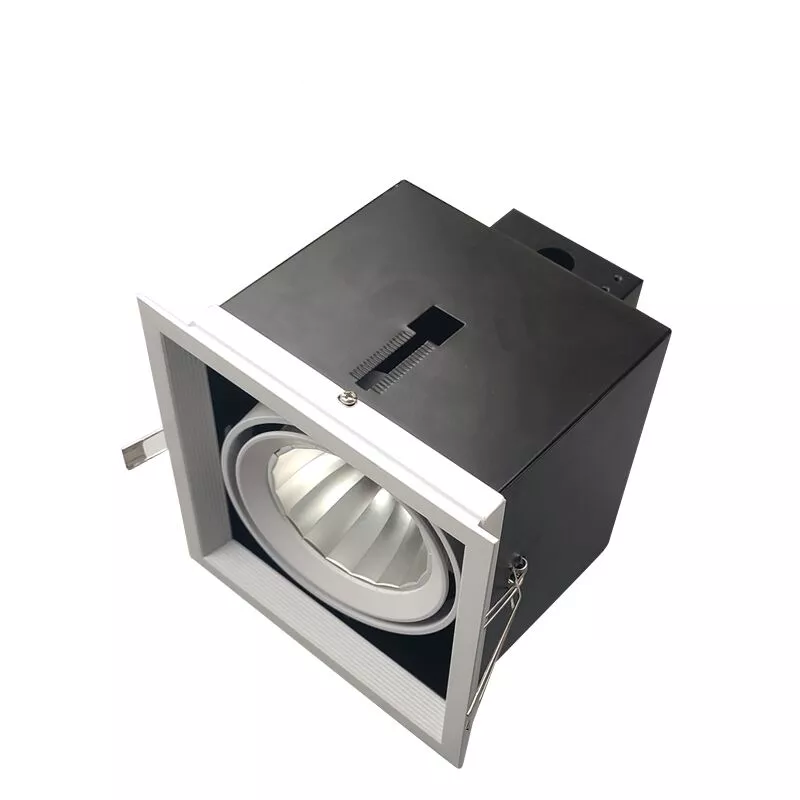

VIDEO Kuala Series LED Grille Downlight
Product Code: PS-GRDL1/2/3*30W-SQ-B
Due to their significant directed illumination effect and extremely high color rendering, traditional halogen lamps are frequently used in homes, commercial buildings, and other locations. However, due to their low luminous efficiency and high energy consumption, they are rarely utilized for extended periods of time. Our recently created series of LED grille downlights, which utilize high luminous efficiency COB/SMD as the light source and a special light-gathering design, is now the preferred alternative to halogen lamps.
Certificate:
Add To Quote
30W
Power
83/92Ra
CRI
110lm/w
Lumen Efficiency
Citizen
LED Chip
Tridonic
LED Driver
Specification Table
| Model | PS-GRDL1*30W-SQ-B | PS-GRDL2*30W-SQ-B | PS-GRDL3*30W-SQ-B |
| Power | 30W | 2*30W | 3*30W |
| Product size(mm) | 185*185mm | 370*185mm | 500*185mm |
| Cut Hole Size(mm) | 165*165mm | 350*165mm | 480*165mm |
| Input Voltage | AC220-240V 50/60Hz | ||
| LED Type | Citizen/Luminus/Cree COB | ||
| Power Supply | Tridonic / Osram / Philips / Boke | ||
| Efficacy(lm/W) | 110LM/W | ||
| Lumen Output±5% | 3300LM | 6600LM | 9900LM |
| Beam Angle | 15/24/36°/60° | ||
| CCT (K) | 2700/3000K/4000K/5000K/5700K | ||
| CRI | 83/92Ra | ||
| PF | >0.9 | ||
| SDCM | <3 | ||
| UGR | <19 | ||
| Material | Die-Casting Aluminum | ||
| THD | <15 | ||
| IP Rate | IP20 | ||
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming | ||
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick | ||
| Warranty | 5 Years | ||

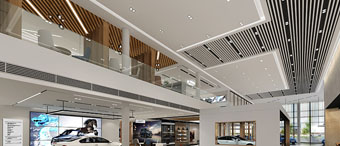

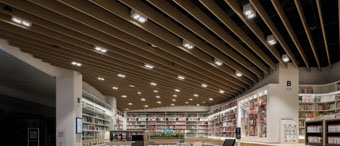

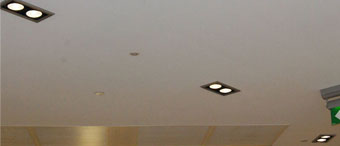

Applications
An LED grille downlight is a type of light fixture that is mounted on the ceiling and provides downward-facing light. These fixtures are often used in kitchens, bathrooms, and other rooms where task lighting is needed. Grille downlights are utilized in a variety of commercial settings, including residences, shopping malls, branded clothes stores, branded furniture, automobiles, and other lighting areas where the display is the primary focus.
LED grille downlights are available in a variety of sizes and styles to suit any need, and they can be used in both indoor and outdoor applications. While grille downlights are often thought of as a functional lighting solution for commercial and industrial applications, there are actually many creative ways to use them in your home. They are great for task lighting, ceiling lights, and ambient illumination in both residential and commercial settings, thanks to their elegant appearance and adjustable beams.
Documents
2022.03.05
18.99KB
Faqs
-
Q.Do you offer guarantee for the products?
A.Yes. We provide a 3-5 year warranty on all of our goods.
-
Q.Is it 0K to print my logo on led light product?
A.Yes.Please inform us formally before our production and confirm the design firstly based on our sample.
