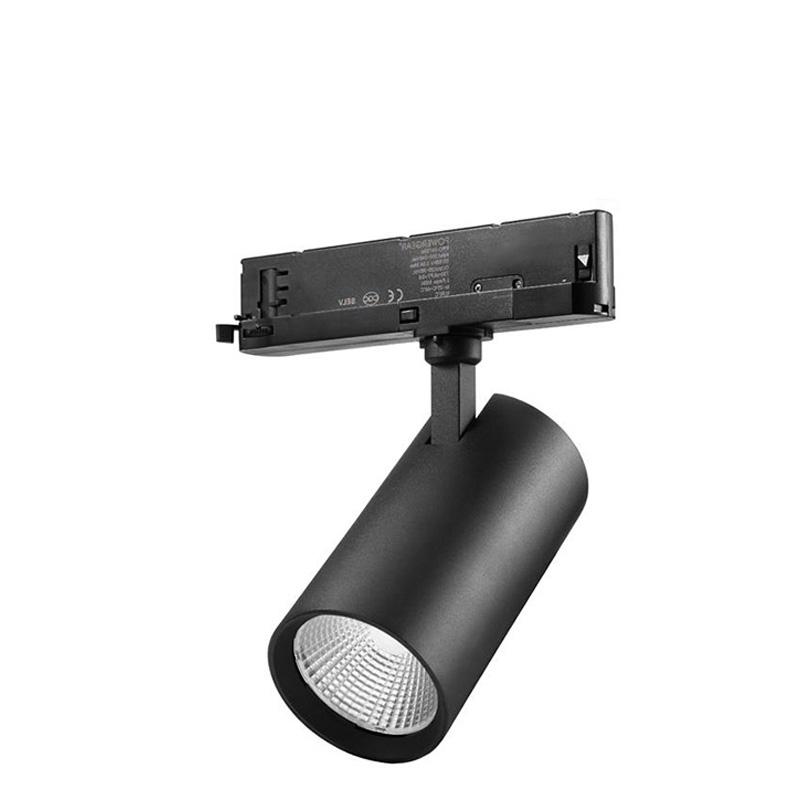

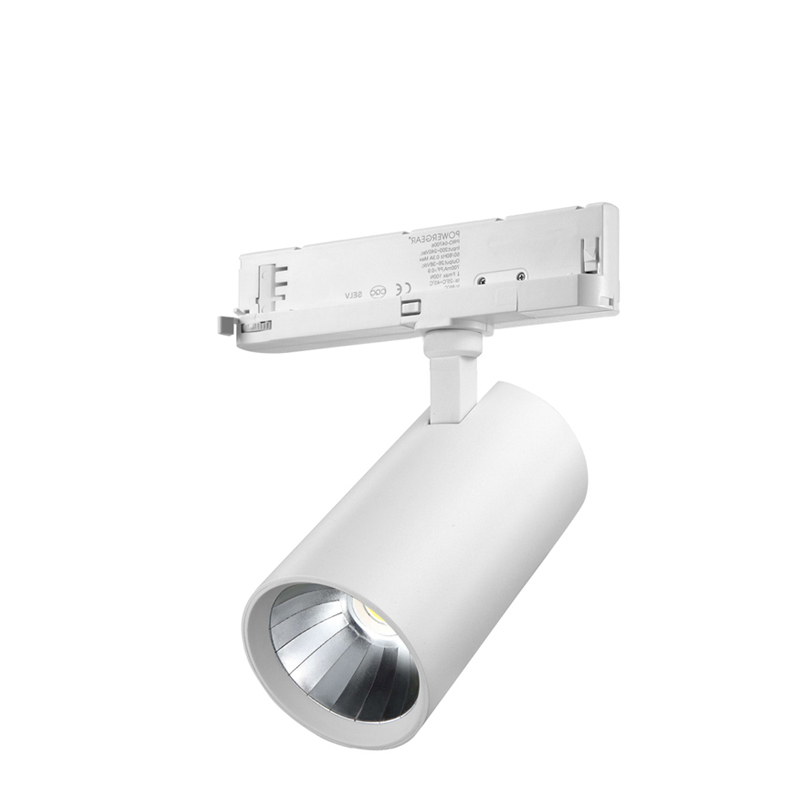

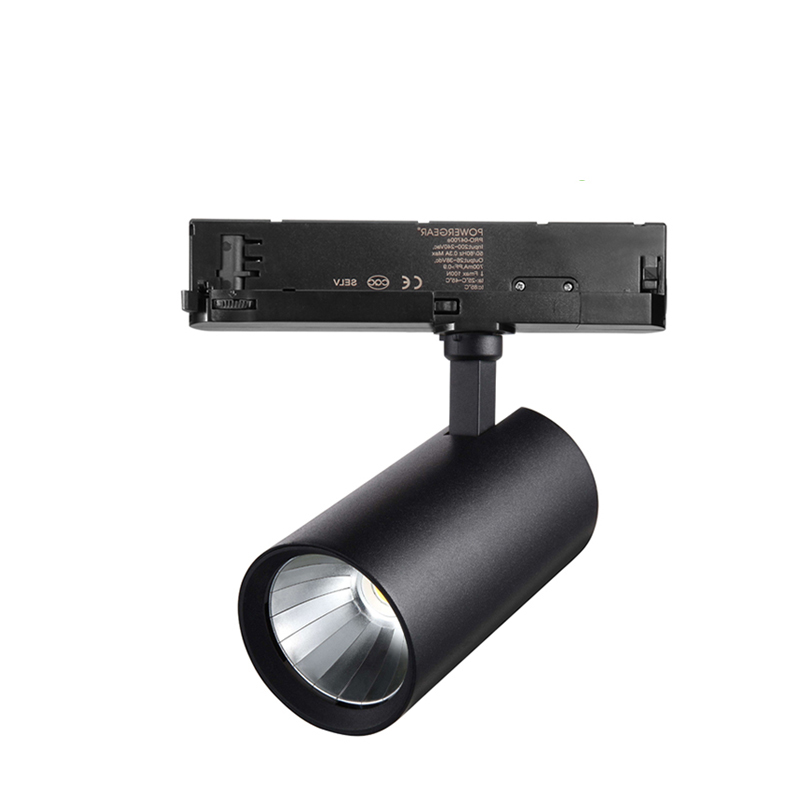

Integrated Driver LED Track Spot Light
Certificate:
Add To Quote
30/35W
Power
83/92Ra
CRI
110Lm/W
Lumen Efficiency
Citizen
Led Chip
Tridonic
Led Driver
An integrated driver LED track spot light is a light fixture that uses an LED light bulb and a driver integrated into the fixture. This type of light is becoming more popular because it offers many benefits over traditional light fixtures. It is designed to be used in a variety of applications, including retail store lighting, display lighting, and task lighting. It is easy to install and provides great light output. Additionally, the integrated driver LED track light is very energy efficient and will help you save money on your energy bill.
Features
- LED track lights are up to 80% more energy efficient than traditional incandescent or halogen track lights.
- The driver is integrated into the light fixture, making the entire unit more compact and streamlined.
- It is a lighting product that combines the features of an LED light source and a track light.
- The integrated driver LED track light has the advantages of high efficiency, long life, and low power consumption.
- Uses an LED light source, has a 3000K color temperature, and a CRI of 85.
- It has a beam angle of 15°/24°/38°/60° degrees and a power consumption of 14W.
- An input voltage is AC220-240V 50/60Hz.
- Usually used in commercial and industrial applications, as well as in some residential applications.
- Energy-efficient than traditional track lights, which can save you money on your energy bill.
- Eco-friendly.

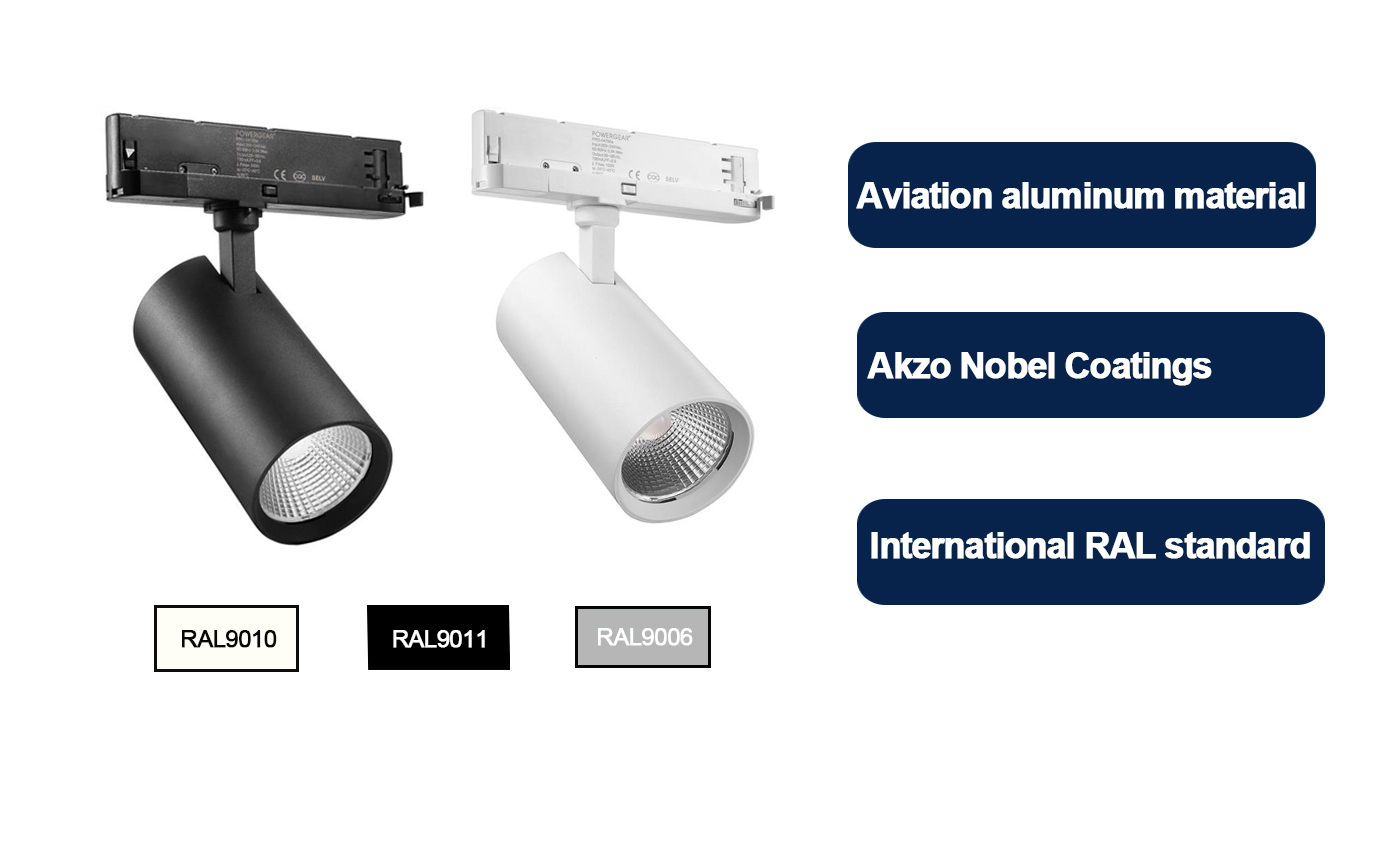

Provide a good heat dissipation effect, extend the service life of the lamp beads, and achieve a light decay of less than 3%, the Englumia I80 is developed with an integrated external driver and uses aviation aluminum material and a thermoelectric separation structure. The power rating is 30/35W, and the dimensions are 85*175mm.
After tens of thousands of times of torsion testing at the derrick link, Englumia I80 was found to be flexible and safe. The product can flexibly modify the Angle direction, rotate 355 degrees horizontally and 90 degrees vertically, project multi-angle three-dimensional light and move freely. It can also vary the light source’s density and change the light’s irradiation direction Having the ability to be stable in any order, it is possible to display goods in various positions from various directions.
To assure product quality and life, the power supply uses Osram, Philips, thionic, boke, lifud, and other worldwide or domestic first-line brands, while also pursuing the standards of no flicker, low harmonics, and high efficiency for finished products. The goods have undergone temperature rise tests, thermal imaging tests, 60-degree tests, aging tests, on-off switch tests, and other safety and quality tests. The production process is rigorously in compliance with the ISO9001 quality inspection and control method to assure the life and excellent appearance of each part of the product.
High-quality lamp beads from international companies like citizen, Bridgelux, Cree, luminous, etc. are used in the Englumia I80. The light color is pure, natural, and comfortable, the control color tolerance is less than 3, and the color temperature range is often between 2700 and 5000K. Four optional angles of 15°, 24°, 38°, and 60° are available when using high-quality reflectors. The light output is uniform, the glare value is below 19, and no glare will irritate the human eye.
To accommodate various installation requirements, Englumia I80 offers three installation methods: ceiling installation, embedded installation, and rail installation. Optional 2wire/3wire/4wire/6wire and US standard halo rail heads can suit various wiring ways and have ultra-high compatibility. Products that pass the drop test can endure unexpected shocks. The lamp has passed LM80, LM79, TM21, ISTMT, IK, and others, and can produce IES reports or dialux simulations.
Model | PS-TL30W-X16I-80 | PS-TL35W-X16I-80 |
Power | 30W | 35W |

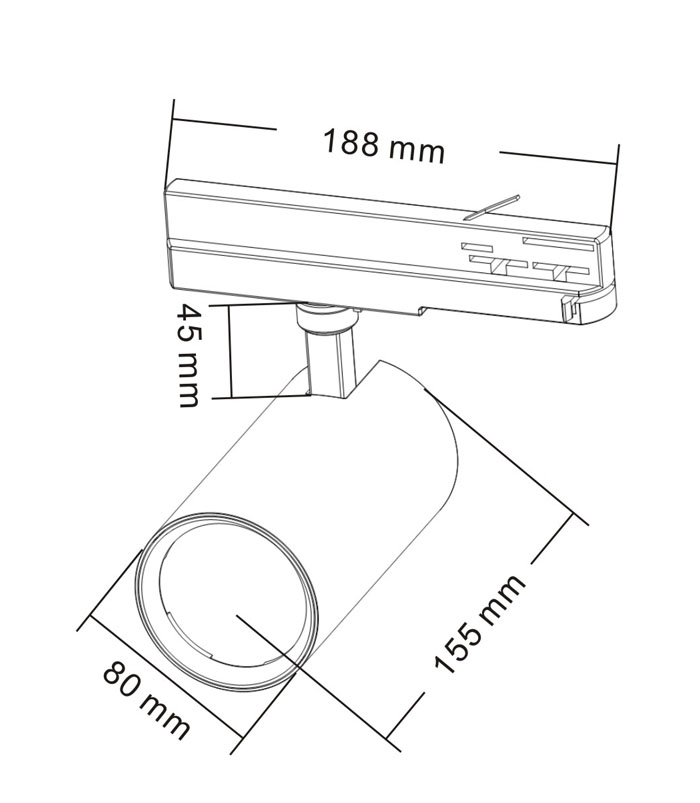

Product size(mm) | D80*H155mm | |
Input Voltage | AC220-240V 50/60Hz | |
LED Type | Citizen/Luminus/Cree COB | |
Power Supply | Tridonic / Osram / Philips / Boke | |
Efficacy(lm/W) | 100lm/W | 100lm/W |
Lumen Output±5% | 3000lm | 3500lm |
Beam Angle | 15°/24°/38°/60° | |
CCT (K) | 2700/3000K/4000K/5000K/5700K | |
CRI | Ra80/Ra90/Ra97 | |
PF | >0.9 | |
SDCM | <3 | |
UGR | <15 | |
Track Adapt | 2/3/4/6wire | |
Material | Die-Casting Aluminum | |
THD | <15 | |
IP Rate | IP20 | |
Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming | |
Certificate | CE/RoHS/CB/TUV/SAA/C-Tick | |
Warranty | 5 Years | |

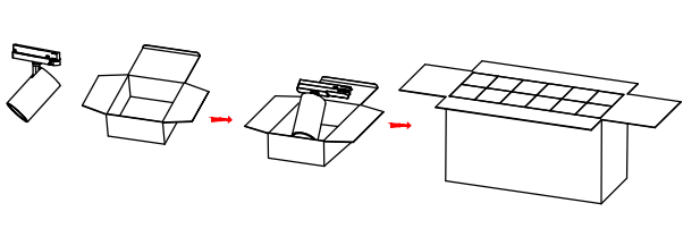

QTY(PCS)/carton | 12 | |
N.W.(KG/carton) | 13 | |
N.W.(KG/carton) | 35cm*54cm*30cm | |
G.W.(KG/carton) | 15 |
The most essential aspect of the track light when installed on a track is that the angle of illumination can be adjusted to focus the light on the main lighting regions. The spotlight, as a decorative light fixture, not only plays a prominent role in overall illumination, but it may also be partially illuminated, which can help to create ambiance and supplement light.

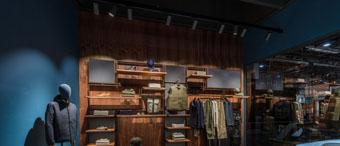

This light is mostly used in LED jewelry display lighting, huge shopping mall lighting, clothes store lighting, entertainment lighting, club decorative lighting, hotels, villas, windows, halls, and other locations.
-
Q.Do you provide a guarantee?
A.Yes. We provide a warranty of 3-5 years.
-
Q.Is it acceptable to print my logo on a led light product?
A.Yes. Please notify us formally before our production and confirm the design first based on our sample.
