DMX512 Track Lights: The Intelligent Control Powerhouse for Stage and Spatial Lighting
By Powerstar
In modern stage performances, commercial exhibitions, architectural lighting, and similar scenarios, lighting is not merely a tool to illuminate spaces but a core element in shaping atmosphere and conveying emotion. DMX512 track lights, with their flexible control capabilities and rich expressive effects, have become a “star player” in professional lighting. This article explores the technical principles, functional features, and real-world applications of this lighting system.
What is the DMX512 Protocol?
DMX512 (Digital Multiplex 512) is a digital communication protocol widely used in stage lighting and special effects equipment. Developed in the 1980s by the United States Institute for Theatre Technology (USITT), it has become an international standard for lighting control.
Core Principle:
DMX512 transmits data via serial signals, with a single line capable of controlling up to 512 channels. Each channel corresponds to a specific parameter of a fixture (e.g., brightness, color, rotation angle), enabling synchronized, precise control through programming.
Communication Method:
Utilizes RS-485 differential signal transmission, offering strong anti-interference performance and a maximum transmission distance of 1,200 meters (with high-quality cables).
The Unique Features of Track Lights
Track lights are modular fixtures mounted on rails, characterized by:
- Flexible Layout: Rails can be freely assembled, and lights can slide or rotate along the track to adapt to spatial needs.
- Modular Design: Supports mixing and matching different light types (e.g., spotlights, wall washers, color-changing lights) for diverse lighting effects.
- Centralized Power Supply: The track itself delivers power, simplifying wiring and enhancing safety.
- When combined with the DMX512 protocol, traditional track lights evolve into an intelligent programmable system, merging flexible installation with precise control.
Components of a DMX512 Track Light System
- Controller (e.g., lighting console, software): Sends DMX commands and programs lighting scenes.
- Decoder (DMX Decoder): Converts DMX signals into instructions recognizable by the fixtures.
- Track and Fixtures: Lights with built-in driver chips that respond to DMX commands.
- Signal Cables: Uses XLR connectors or RJ45 Ethernet cables to form the control network.
Core Functions and Advantages:
Multi-Fixture Synchronization
A single controller can manage hundreds of lights simultaneously—e.g., synchronizing 20 track lights to change colors, strobe, or move in unison for dramatic effects.
Precision Parameter Adjustment
Each fixture can be independently adjusted for brightness (0-100%), RGBW colors, color temperature, and dynamic effects (e.g., gradients, breathing), meeting artistic demands.
Scene Presets and Real-Time Control
Lighting designers can pre-program scenes (e.g., “warm light mode,” “dynamic spotlighting”) for instant switching or use faders for live adjustments.
High Expandability
Integrates with audio triggers or MIDI devices for automated effects like “lighting synchronized to music.
Key Application Scenarios

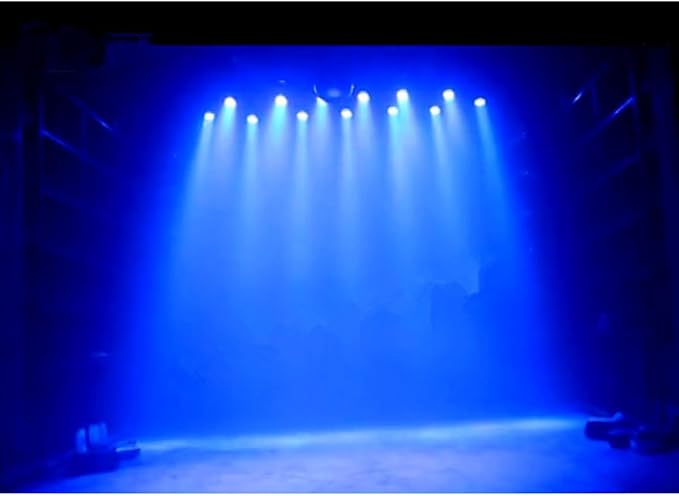

Stage Performances
Concert track light arrays follow performers’ movements with precise spotlighting and atmospheric transitions.
Theaters use DMX programming to align lighting with plot rhythms, enhancing dramatic tension.
Commercial Spaces
Museums employ track lights to highlight exhibits, adjusting color temperatures to suit artworks.
Retail stores create dynamic lighting displays (e.g., holiday-themed shows) to attract customers.
Architectural Lighting
DMX track lights on building facades produce dynamic art displays, such as gradient shifts or flowing light effects.
Virtual Production
In film and TV, DMX track lights sync with virtual engines for real-time lighting interactions.
Usage Considerations
Signal Stability: Avoid overly long or branched signal lines; use amplifiers or splitters if needed.
Address Coding: Assign unique DMX addresses to each fixture (via dip switches or software) to prevent command conflicts.
Power Isolation: High-power fixtures require separate power supplies to avoid track overload.
Future Trends
Wireless DMX: Adopting Wi-Fi or Bluetooth to reduce cabling complexity.
Smart Integration: Merging with IoT for voice control or AI-driven adaptive lighting.
Energy Efficiency: High-efficiency LEDs to lower power consumption and heat output.
Conclusion
DMX512 track light systems merge digital control technology with modular lighting, unlocking boundless possibilities for design. Whether crafting immersive stages or smart city lightscapes, they remain indispensable. As technology advances, lighting art will grow even more intelligent and dynamic, continually illuminating new frontiers of human creativity.
